4 Doors Access Controller

Access Control 4 Doors Network Controller in Dubai UAE

Access Control 4 Doors Network Controller:

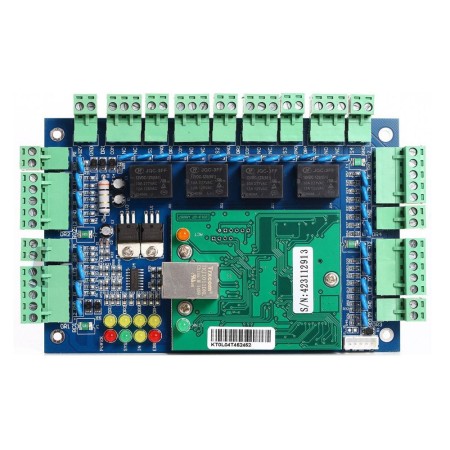

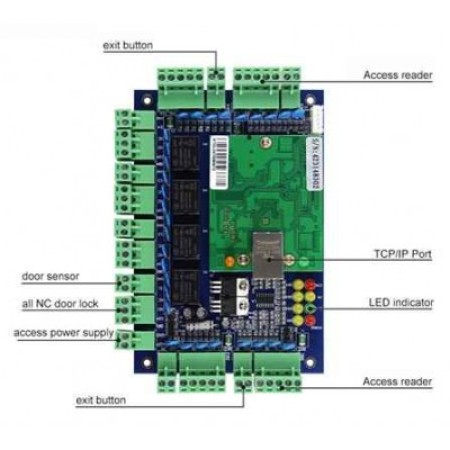

• Double Door Network Access Control PCB Board
• Wiegand Gate Panel Access Control Board with SDK
• Double door Network access control board built-in TCP/IP,
• Support APP/4G/Web-server with free software.

Specifications:

• Double 4 Door TCP/IP Network Access Control PCB Board
• Wiegand Gate Panel Access Control Board with SDK Free Software
• Network access control is the act of keeping unauthorized users
• and devices out of a private network...Network access control,
• or NAC, is one aspect of network security.
• There are many NAC tools available,
• and the functions are often performed by a network access server.
• Parameter : Four Door Control Panel
• Model : ACB-004
• Communication : TCP/IP 10M/100M adaptive
• Description : Control 1 door, get in and out the door by swiping the card
• Size of PCB board : 160mm*106mm
• Size of Case : 273mm*228mm*65mm
• Power Supply : 12VDC 4-7A
• Power Consumption of Circuit Board : Less than 100mA
• Input Format of Reader : Wiegand 26
• Door Controlled : 4door
• Door opening time extending setting : 1-600 seconds
