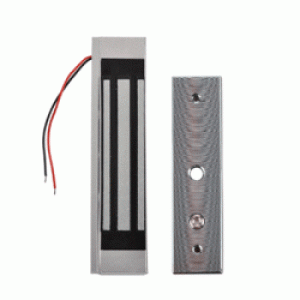

Magnetic Lock 180 Kg

Electromagnetic Door Lock 180 Kg in Dubai UAE

Electromagnetic Lock 180 Kg 350 Lbs:

• Magnetic Lock for Interior Doors
• Without Signal Output
• Voltage: DC12V or DC24V
• Holding Force: 180KG(350Lbs)
• Lock Size: 170Lx41Wx21H(mm)
• Current Draw: 12V/300mA 24V/150mA
• Electromagnetic locks consist of an armature and a coil assembly,
• which become magnetized when an electric current passes through them.
• This magnetic field secures the door
• and electronically controls when doors are locked and unlocked.
• Electromagnetic locks are fail-safe by design.
• Lock Size : 170Lx41.5Wx20.5H(mm)
• Armature plate : 130Lx33Wx9.3H(mm)
• Holding Force : 180KG (350Lbs)
• Voltage : DC12V or DC24V (24V need to customize)
• Current Draw : 12V/280mA  24V/150mA
• Signal Output : Pls see EL-350TS
• Suitable for : Wooden door, Glassdoor, Metal door, Fireproof door
• Surface Temp : ≤20°C
• Operating Temp : -10℃ ~ 55℃ (14°F~131°F)
• Suitable Humidity : 0~90%(non-condensing)
• Finishes for Shell : Anodized aluminum surface texture processing
• Finishes for Magnetic : Zinc
• Finishes for Armature : Zinc
• Weight : 1.2kg
