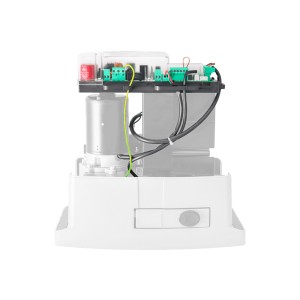

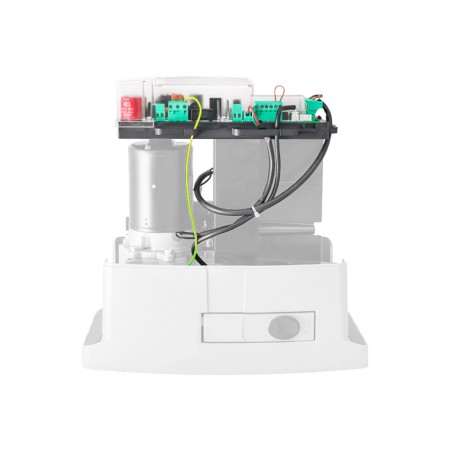

BENINCA CP B24 TURBO

BENINCA CP B24 TURBO Control Board in Dubai UAE

CP.B24 TURBO
1 actuator for sliding gates, series BULL624/1224 TURBO
115 or 230 Vac (selectable) 50/60Hz
24 Vdc / 20 A
Integrated LCD display,
Integrated 433.92 MHz 512-code radio receiver with ARC coding,
Removable terminal boards,
Automatic, semi-automatic and Deadman's logic,
Motor limit switch inputs,
Step by step, open, close and stop inputs,
Photocell input (PHO) configurable
as active in opening-closing or only in closing phases,
Photocell input (PHC) active both in opening and closing phases,
Input for N.C or 8K2 sensitive edge,
Input for safety sensor,
OPEN input configurable as pedestrian,
Two outputs configurable as gate open indicator,
second radio channel of the incorporated receiver,
service light, photocell testing,
Predesigned for KNX connection through X.BE board (optional),
Auto setting of operating parameters,
Electronic torque adjustment with automatic calculation for each point in the stroke
