FAAC E045S

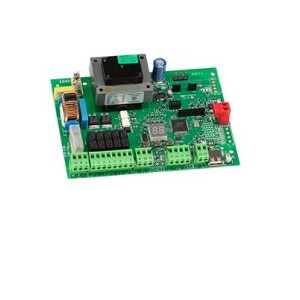

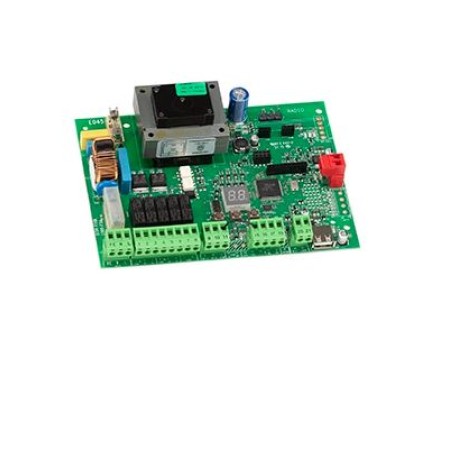

FAAC E045S Control Board for Swing Gate Motor in Dubai, Sharjah UAE.
- E045S Electronic control unit.
- For 230V swing-leaf gate automations.
- The E045S electronic control unit can command one or two operators
- Thanks to the new 2easy and OMNIdec technologies it is compatible with the XF 433/XF 868
- quick insert module (connector set-up), with the external receivers and with XP 15B and XP 20B D photocells (“BUS” connection).
- The BUS XIB interface is provided for the connection of traditional photocells.
Basic programming:
- Operating logic : Semiautomatic, Automatic, Semi-automatic step-by-step,
- step-by-step Auto, Auto Security stepper, Semi-automatic B, C Deadman
- Pause time : Programmable (from 0 to 9 min 50 sec)
- Number of motors : Selectable
- Thrust power : Adjustable on 50 levels for each motor independently
- Encoder use : Selectable
- Leaf delay time in closing : Programmable (from 0 to 1 min 30 sec)
- BUS 2-Easy device registration : Selectable
- Motor Power : 1 and 2 (independently)
- Working time learning : Simple self-learning (max 4 min and 10 sec).
- Self-learning working and deceleration time of two leaves in one complete working cycle only.
- With SAFEcoder absolute encoder, the open/closed/deceleration positions are learned
- Advanced programming : Reversing stroke and ram stroke.
FAAC E045S Control Boards in UAE
- Brand: FAAC
- Product Code: FAAC E045S
- Availability: In Stock
-
AED 1,170.00
