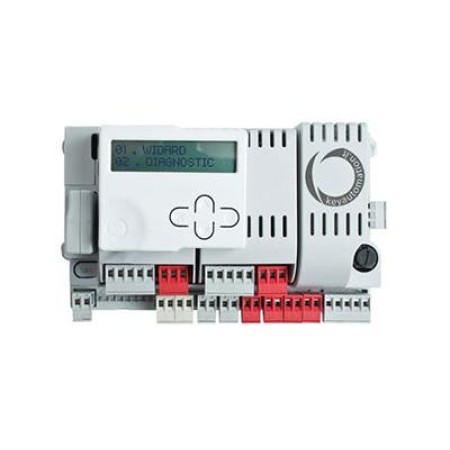

KEY 14A

KEY 14A Automatic Gate Control Board in Dubai, Sharjah, Ajman, Abu Dhabi UAE.

24 Vdc Control units for one or two motors
New generation control unit "One For All" to control all 24Vdc automations.
Night Light System to control Led light during night hours.
IN ORDER TO PROGRAM CONTROL UNIT 14A YOU MUST HAVE THE DISPLAY DY / DYL OR WIRELESS MODULE
• possibility to combine the power modules according to the installation
• same programming for different systems
• wide display in different languages to program both the motor and
the radio receiver
• compatible with main home automation systems
• amperometric obstacle detection with run inversion
• standard or programmable slowdown in opening and closing
• programmable automatic partial closing
• separate OPEN-STOP-CLOSE inputs and PP - PARTIAL input
• safety edge 8,2K ohm NC - photo 1 and photo 2
• inputs and safety devices LED visualization
• optional test for safety edge
• LED courtesy light output
• open gate indicator output
• plug-in programmable radio receiver 4 channels
• for motors with or without encoder
• flashing light output with user indicator
• electrolock output
• battery back-up optional
