NICE MC200

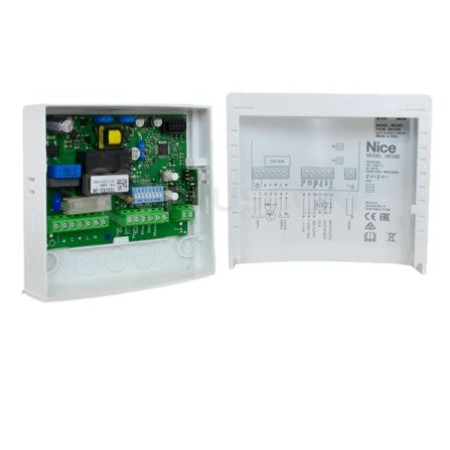

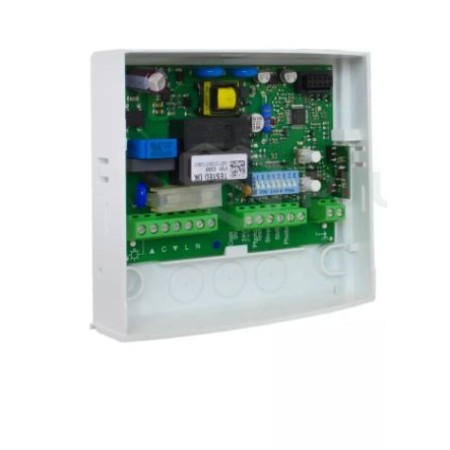

NICE MC200 Control Board for  Rolling Door in Dubai UAE.

• Control unit for a 230 Vac damper motor, with semi-automatic and automatic closing,
• flashing output and with built-in receiver compatible with the transmitters of the Flor and Smilo series.
• Simplified programming via O-View thanks to the compatibility with the Opera system,
• it is possible to manage, program and control the automation system even remotely,
• in a simple and safe way, with considerable time savings.
• Built-in radio card: compatible with NICE FloR and Smilo systems.
• Programmable input as step-by-step or open.
• Photo entry or close.
• Input for connecting a sensitive edge of resistive type 8.2 KOhm.
• Semi-automatic and automatic operation.
• Flashing output.
• Output phototest or shutter status.
• Possibility of remote connection.

Specifications:

• Mains power supply (Vac 50/60 Hz): 120 / 230 10%
• Battery powered (Vdc): -
• Max motor power and current (VA; A): 450 (120V) - 900 (230V); 5
• Max service current 24 V and phototest (A): 0.055
• Max flashing output voltage and power (V; W): 120 - 230; 40.
