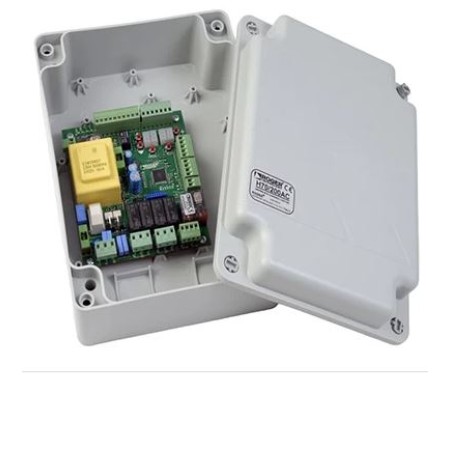

ROGER H70/200AC BOX
ROGER H70/200AC Control Board in Dubai, Sharjah UAE.
- H70/200AC/BOX
- Control unit for 2 motors 230V AC with slow down, with plastic box.
Technical Features:
- Power line supply : 230V AC - 50Hz
- Operating temperature : -10+55 C°
- Protection level : IP54
- N. motors activated : 2 asynchronous monophase
- Max power per motor : 600W 230Vac
- Max courtesy light charge : 100W (12-230V ac/dc)
- Max power gate open light : 2W 24Vac
- Max voltage accessories output : 350mA 24Vac (500mA 24Vcc)
- Max flashing light charge : 40W (12-230V ac/dc)
- Maximum dimension product in mm (L x W x H) : 228 x 307 x 118
- Product weight packed (Kg) : 2,1.
ROGER H70/200AC BOX Control Boards in UAE
- Brand: ROGER
- Product Code: ROGER H70/200AC
- Availability: In Stock
-
AED 990.00
