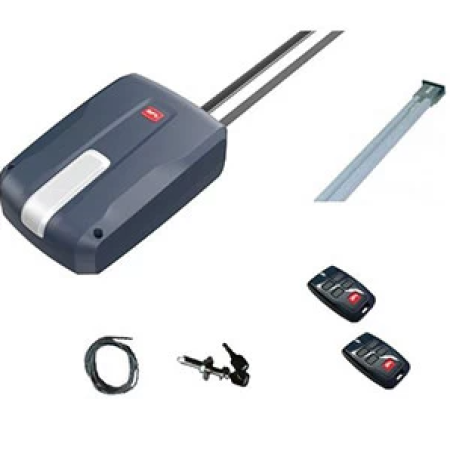

BFT BOTTICELLI BT 650

BFT BOTTICELLI BT A 650 Garage Door Motor in UAE.

• Product code P915211 00002
• 24 V operator for sectional garage doors with tractive force 60 kg and intensive use.
• Max door surface area 10 m². Opening speed 210 mm/sec.

Main features:

• Fast and powerful motors: fast opening to minimize waiting times and intensive use.
• Encoder and exclusive D-Track force management system: for safe installation in all conditions.

Technical data sheets:

• Control unit : VENERE BT A ETD
• Nominal voltage : 24 V
• Power consumption : 200 W
• Tractive force and thrust : 65O N
• Number of daily movements at 60° : 50
• Door surface area : 10 m²
• Max opening speed (chain rail) : 210 mm/sec
• Max opening speed (belt rail) : 240 mm/sec
• Type of limit switch : Encoder + mechanical stop for opening
• Slowdown : Yes
• Locking : Mechanical
• Release : Steel cord or cable
• Impact reaction : D-Track
• Protection rating : IP20
• Environmental conditions : -20 ÷ 60 °C
• Interconnectivity : no
• Consumption on standby : 6.7 W
