NICE TENKIT

NICE TENKIT Garage Door Opener Motor in UAE

NICE TENKIT Garage Door Opener Motor:

• Tenkit For projecting and non-projecting
• up-and-over doors of up to 9 m2 and 2.6 m high
• Irreversible electromechanical 24 Vdc gear motor
• Functions: standard input for photocells and possibility
• of connecting phototest function
• in self-learning mode during installation.
• Simplified programming via O-View
• thanks to compatibility with the Opera system,
• the automation system can be managed,
• programmed and controlled even at a distance,
• with considerable savings in time.
• Convenient: built-in radio card also compatible
• with Nice Flo and Smilo systems,
• possibility of memorising up to 100 transmitters.
• Push-button programming and automatic position search
• Adjustments: 3 force levels, 2 speeds,
• 3 pause time levels, 3 step-by-step modes.
• Maximum safety: provision for connection
• of latest generation 8.2 KOhm sensitive edges.
• Obstacle detection and automatic programming of work times,
• monitoring of motor absorption throughout travel,
• self-diagnostics via the flashing light and courtesy LED light.

NICE TENKIT Specifications:

• Code TNLKCE
• ELECTRICAL DATA
• Power supply (Vac 50/60 Hz) 230
• Absorption (A) 0,9
• Power (W) 200
• PERFORMANCE DATA
• Speed (rpm) 1,7
• Torque (Nm) 280
• Work cycle (cycles/hour) 20
• DIMENSIONAL AND GENERAL DATA
• Protection level (IP) 44
• Working temp. (°C Min/Max) -20 ÷ +55
• Dimensions (mm) 150x158x512 h
• Weight (kg) 15,5

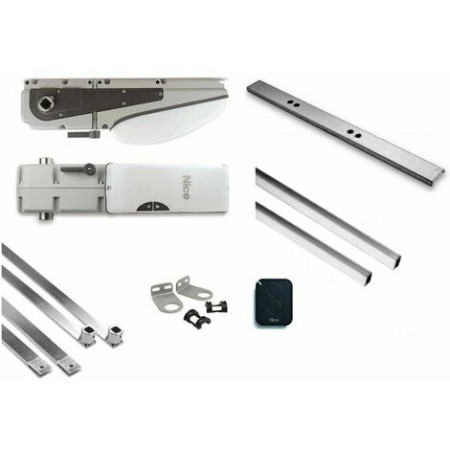

NICE TENKIT Includes:

• 1 x NICE TENKIT Garage Motor.
• 2 x Nice Flo2re Remote Control 433.92 MHz.
• 1 x Push button.
• 1 x Rail builtin belt.
• 1 x Pair of Photocells.
