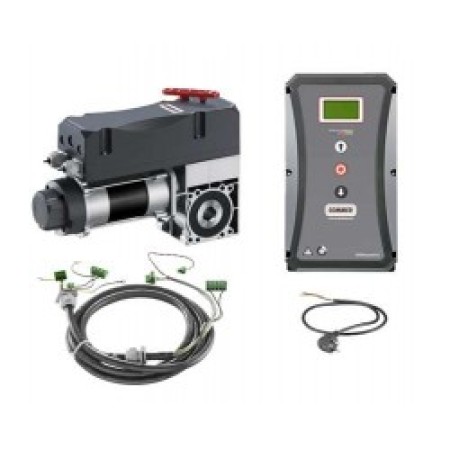

SOMMER GIGALINE

SOMMER Gigaline Garage Door Opener in UAE

SOMMER GIGALINE Industrial Garage Door Motor in UAE

• Garage door operator GIGAline
• The garage door operator for heavy loads and challenging operating conditions.
• Industrial Door Operator with Frequency Converter
• The track is driven by an industrial door operator with a frequency converter.

SOMMER GIGALINE Technical Data:

• Rated voltage : 1~230 V
• Rated frequency : 50-60 Hz
• Rated current : 3.45 A
• Temperature min. : -5 °C
• Temperature max : 60 °C
• Protection class : IP54
• Output torque : 100 Nm
• Switching capacity : 1.5 kW
• Limit stop range : 14
• Output speed : 35 rpm
• Max. door width / door height sectional door : 8,000 mm / 3,500 mm
• Travel length (standard) : 3,060 mm
• Max. travel length extended : 4,160 mm
• Max. door weight : 500 kg
• Max. running speed : 210 mm/s
• Max. recommended no. of spaces : 100
