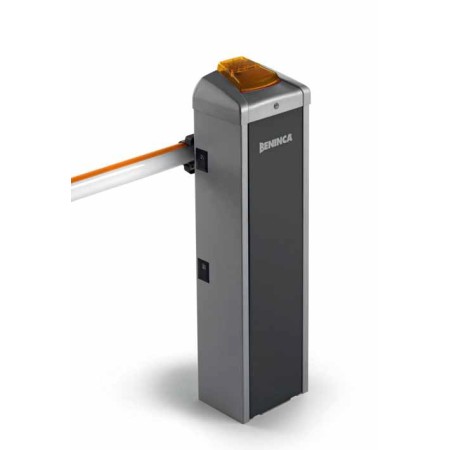

BENINCA EVA 8

BENINCA EVA 8 Parking Gate Barrier in UAE

BENINCA EVA 8 Parking Gate Barrier:

• Electromechanical barrier Eva.8
• passage maximal length- up to 8 m
• provided for intensive use
• opening/close time-from 3,5-6 seconds
• possibility for protection with photo cells
• built-in UPS emergency power supply with 2 pcs. batteries
• strong and compact engine for maximal reliability and long life
• integrated control block with fast and easy programming

BENINCA EVA 8 Data:

• Power supply 100 ÷ 250 Vac (50-60Hz)
• Motor supply 24 Vdc
• Max absorbed current 3.1 / 1.6 A
• Torque 285 Nm
• Opening time 3.5” ÷ 6”
• Duty cycle intensive use
• Protection level IP44
• Built-in control unit
• Integrated receiver
• Encoder
• Operating temperature -20°C /+50°C
• Lubrication GREASE
• Passage width 8.0 m
• Weight 82 kg

BENINCA EVA 8 kits Contains:

• 1 x BENINCA EVA 8 Gate Barrier 8m.
• 1 x CP.EVA control unit.
• 1 x PUPILLA.R Pair of fixed photocells.
• 2 x To go Remote control.
• 2 x Boom Arm up to 8m.
• 1 x Exit Push Button.
