LIFE SUPRA MB 230V 4M

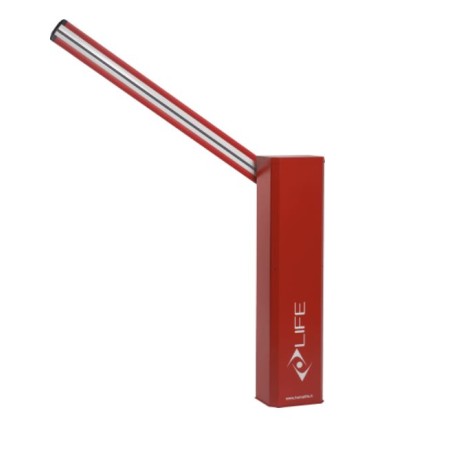

LIFE SUPRA MB 230V Parking Gate Barrier upto 4m in UAE

Characteristics:
Automatic road barrier for booms of up to 4 metres.
Equipped with an encoder and limit switch for high precision.
External shell coated with polyester paints specially made for outdoor use.
Shell painted red for improved visibility.
Boom illumination with LEDs.

TECHNICAL DATA:
SUPRA 230 Vac MB

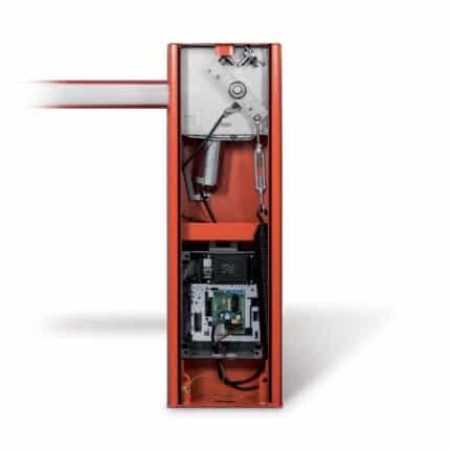

Road barrier with electromechanical gear motor and control unit.
Powersupply : V 230 Vac 50 Hz
Motor powersupply : V 230 Vac 50 Hz
Maximum power consumption : W 150
Maximum current consumption : A 0,9
Thrust : Nm 150
Lubrication : Tipo Grease
Capacitor : uF 6,3
Limit switch electromechanical : Yes
Encoder : Yes
Speed : Rpm 3,5
Opening time : Sec 5
Maximum Full Cycle time : H 150 (25°C)
Work cycle : % 40% (25°C)
Nominal maximum work time : Min 35' (25°C)
Operating temperature : °C -20 +70
Motor thermal protection : °C 140
Protection class : IP 54
Motor insullation class : F
Dimensions - Weight : 25x15 H100 30 Kg
Control unit : RG1R DL S

LIFE SUPRA MB 230V Kit Includes:
1 x LIFE SUPRA MB 230V
1 x 4 Meter Arm Boom
1 x Safety Photocells

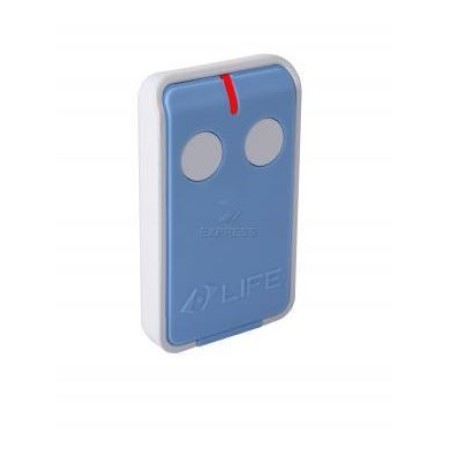

2 x Remote Control
1 x Push Button
