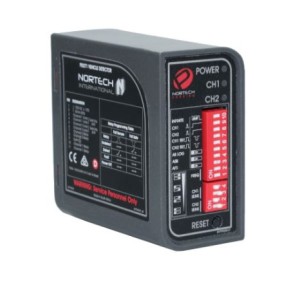

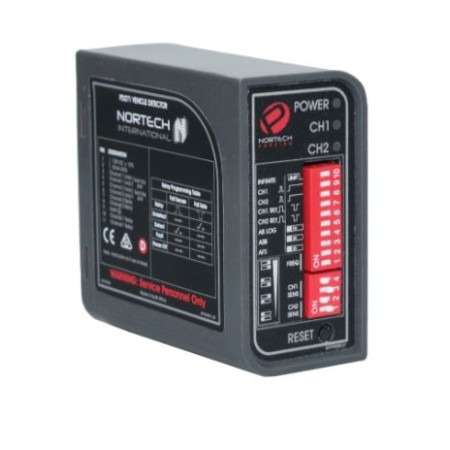

NORTECH PD232 Loop Detector

NORTECH PD232 Loop Detector Supplier in Dubai UAE

NORTECH PD232 Dual Channel Loop Detectors:

PD132 / PD234 Enhanced Single Channel Detectors

FEATURES:

• Diagnostic Capabilities – The software of this unit allows comprehensive diagnostics
• capabilities in conjunction with separate DU100 hand-held diagnostics readout.
• Selectable Permanent Presence – Using this feature,
• the output of the presence relay will be maintained for an indefinite period,
• thereby eliminating premature barrier/gate/door closure and possible vehicle damage.
• Loop Isolation Protection – The loop isolation transformer provides protection against lightning
• and transient damage and allows for operation with single point to ground sensor loops.
• Loop Frequency Indication – The possibility of crosstalk (interference) between adjacent loops/detectors
• can be determined by an integral indication, and eliminated by changing the frequency settings.
• Automatic Sensitivity Boost (ASB) – This feature facilitates the reliable detection of large truck-trailer
• combinations and high-bed vehicles by automatically boosting the sensitivity to maximum on detection of a vehicle.
• Detect Filter – Selection of the filter option will provide a finite turn-on delay,
• thus allowing small objects or moving vehicles to pass over the loop undetected
