Shutter Motor Controller

Rolling Shutter Motor Remote Controller in UAE

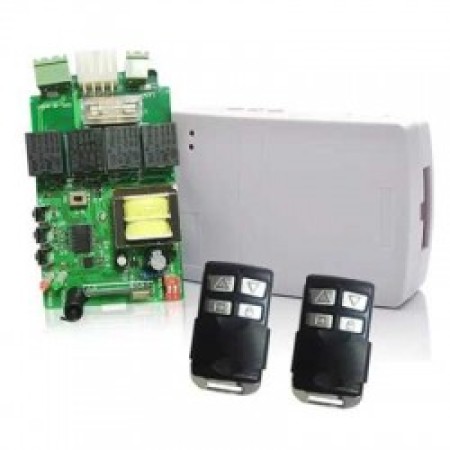

Remote Control Photocell with Controller for Shutter Motors

• Remote Control Photocell with Controller for Shutter Motors,
• the sensor cuts off the motor while running if any obstacles are found while opening/closing.
• Remote Control Photocell with Controller for Shutter Motors
• The Tubular motor controls the roller shutter. If these sensors are dirty,
• they will not work properly and may eventually damage the shutter.
• Any type of dirt or debris can wreak havoc on these devices.
• To prevent this from happening, check them regularly. After that,
• connect them to a power supply try operating your roller shutter,
• and make sure it’s in the opening or closing mechanism.

Main Features of Remote Control Photocell with Controller:

• Remote Control System complete with sliding covers to protect the buttons
• Suitable for roller shutter doors which have a 115V tubular motor fitted.
• Separate Photocell function with built-in run timer.
• The Remote controls have independent Open, Close, and stop Buttons.
• Plug-in terminals, receiver accepts up to 50 fobs extra fobs available in our
• Suitable for motors with a loading capacity of up to 1000w
• Deadman function (hold to run on key fob) selected via DIP switch
• Low voltage manual switch function
• Motor directional change function
• Push button directional change function
• Industry-standard CPU
• ABS ultraviolet-resisting plastic housing
• Supplied pre-wired with 1.5m of 3-core cable & a 3-pin plug
• External Key Switch selections
• If you require this unit, but not with a pre-wired plug and cable,
• or a control unit that doesn’t need to operate

Specification:

• Product Name : Remote Control Photocell with Controller for Shutter Motors
• Motor Type : Roller Shutter Motor
• Material : ABS, Plastic and Silicone
• Channel : 4 Channels
• Voltage : 220V AC
• Operating Current : ≤10mA
• Frequency : 433mhz
• Transmission Speed : 50-60KHZ
• Sensitivity : ≥-105dbm
• Temperature : -40ºC ∼ +80ºC
• Static Power Consumption : 1W
• Protection Class : IP44
• Code : Fixed Code, Learning Code, Rolling Code.
• Transmission Distance : 0 – 100 Meters
• Chip and Operating Mode : Copy code remote control for the motor
• Package Includes : Receiver Controller, Remotes.
• Function : Auto-close, OPEN/STOP/CLOSE, Maximum Time Setting, etc.
• Application : Rolling Shutter Side Motor Operator/ Electric
• Roller Garage Doors Opener / Direct Drive Shutter Motors
