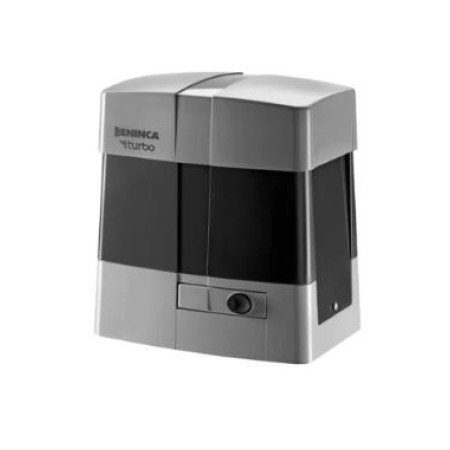

BENINCA BULL 1224 TURBO

BENINCA BULL 1224 TURBO Sliding Gate Motor in UAE

BENINCA BULL1224 TURBO | 1200 KG

• Commercial use
• 24 Vdc
• Up to 1200 kg
• Turbo Gear motor with opening speed higher than standard values
• Maximum manoeuvre speed is 24 m/min
•


BENINCA BULL1224 TURBO Kit Includes:

• 1 x BENINCA Bull1224 Turbo Sliding Gate Motor,
• 2 x BENINCA Remote Control 433.92 MHz
• 1 x  Pair photocells for outdoor use.
• 1 x Control Unit (Inbuilt in the motor)
• 4 x Nylon Rack 1m.
• 1 x Blinker light.
• 1 x Push Button.

BENINCA BULL Technical Data:

• Power supply : 115 Vac / 230 Vac (50-60Hz)
• Motor supply : 24 Vac
• Max absorbed current : 3 A
• Maximum thrust : 390 N
• Opening speed : 12,5 ÷ 25,5 m/min
• Duty cycle : 80%
• Protection level : IP44
• Built-in control unit : yes
• Integrated receiver : yes
• Encoder : yes
• Virtual encoder : no
• Magnetic limit switches : no
• Pinion for rack : M4 Z18
• Operating temperature : -20°C /+50°C
• Lubrication : Oil
• Maximum gate weight : 1200 kg
• Weight : 17.3 kg
• Kit weight : 20 kg.
