FAAC 741 900 KG

FAAC 741 900 Kg Sliding Gate Motor in Dubai UAE.

• 741 230V Gearmotor.
• Max. leaf weight 900 Kg.
• Max speed 12 m/min.
• Use frequency 40%.
• Easy programming thanks to the display and to the prewired control unit
• Magnetic limit switch.
• Integrated encoder with reverse function upon obstacle detection and specific management in opening and slow down.

Dimensions and technical specifications:

• Power supply voltage : 220-240V~ 50/60 Hz
• Electric motor : Asynchronous single phase
• Max. power : 500 W
• Max. torque : 24 Nm (*)
• Max expressed force : 650 N (*)
• Reduction ratio : 1:25
• Max. leaf width : 15 m
• Leaf speed : 12 m/min :
• Speed adjustment and motor control : No
• Limit switch : Magnetic
• Pinion : Z16 module 4
• Encoder : Optical encoder
• Force adjustment : Via electronic control board
• Operating ambient temperature : -20°C ÷ +55°C
• Thermal protection : 140°C
• Protection class : IP44
• Weight : 11 kg
• Dimensions (LxDxH) : 295 x 181 x 320 mm
• Max. leaf weight : 900 Kg
• Use frequency : S3 – 40%
• Electronic equipment
• 740D incorporated.

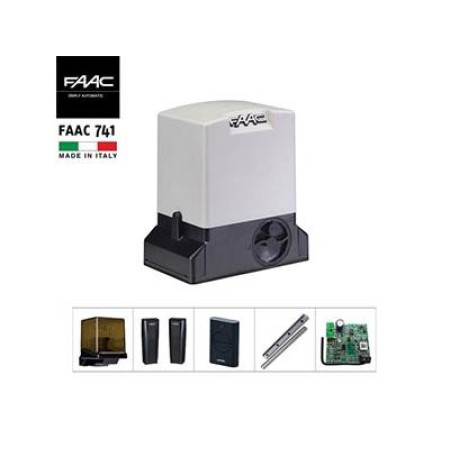

Faac 741 Kit Includes:

• 1 x 741 E Z16 Gearmotor with electronic control unit and integrated encoders.
• 4 x Nylon Rack 1 meter.
• 1 x Plug in receiver 1 channel RP 433 SLH.
• 1 x XLED flashing light.
• 1 x Lock with key.
• 1 x Pair of photocells XP 20D.
• 1 x 2 channels transmitter XT2 433 SLH LR.
• 1 x Push button.
