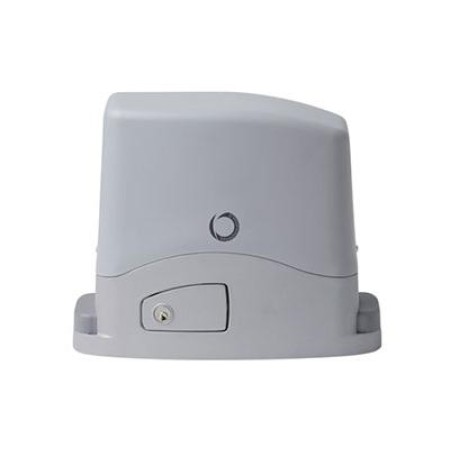

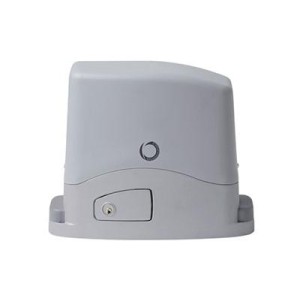

KEY TURBO 500 KG

KEY 500 Kg Sliding Gate Motor in Dubai UAE.

• Product code : 900KSC52KS
• Speed : 16 cm/s
• Control unit : CT102B
• Nominal power : 300 W
• Max leaf weight : 500 kg.

Technical Features:

• Speed cm/s : 16
• Torque Nm : 16
• Duty cycle percentage % : 30
• Control unit : CT102B
• Voltage Vac : 230
• AC Voltage frequency Hz : 50/60
• Nominal current A : 1,3
• Nominal power W : 300
• Appliance isolation class : I
• Degree of protection IP : 44
• Dimensions (L - D - H) mm : 320 - 184 - 260
• Item kg : 12,7
• Min operating temperature °C : -20
• Max operating temperature °C : +55
• Max leaf weight kg : 500

What’s Included:

• 1 x Sliding gates up to 500 Kg, 230 Vac.
• 1 x CT102 control unit.
• 2 x KEY 900SUB44WR 4-channel transmitter, white colour, XR rolling code 433 MHz
• 1 x 900FT33 Pair of photocells for external use and flush mounting.
• 1 x Built in Receiver.
• 1 x 900LUMY-230E 230 Vac flashing light, with antenna.
• 4 x 4m Nylon Rack


With 230 Vac control unit CT102
