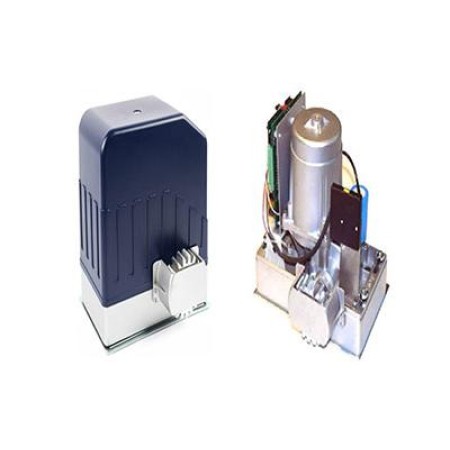

KIMMATIC 600 KG

AUTOMATIC SLIDING GATE MOTOR
KM-2001 600KG
MADE BY KOREAN TECHNOLOGY
 PRODUCT DESCRIPTION:
The latest addition to Kimmatic Auto Door family of operators is KM-2001 Basic Kit Sliding Gate
Opener for sliding Gate. It is AC powered and designed with a 240V AC (1.5 HP equivalent)
motor. This gear rack sliding gate opener provides exceptional starting torque and continuous
operation which makes it ideal for most applications. Constructed with an aluminum alloy chassis,
it is corrosion resistant and light enough for one person to carry and install. The heavy-duty motor
supports gates weighing up to 1600 lbs. and up to 30 ft in length.
 FEATURES:
• Opens gates weighing up to 600 kg and up to 30 ft. in length
• Has a built-in radio receiver
• Supports up to 100 Remotes
• 2 included User programmable and user erasable remote codes
• RF hopping code technology prevents your remote code being accessible to others
• Auto-Close Feature
• Power Supply: AC 220V / 230V
• Operating Time: 0 - 44 seconds
• For your safety, this model will stop and reverse if it encounters an obstruction on closing and stop
when it encounters an obstruction on opening
• Manual key release design for emergency purposes
• Pedestrian mode
• Single Phase Motor
