ROGER M30/326 400 KG

ROGER H30/643 Sliding Gate Motors in UAE.

• H30/646
• Gate Weight : 400 Kg.
• Made in Italy
• Electromechanical motor 230V AC irreversible ideal
• for sliding gates up to 600 kg with built-in control unit H70,
• optical encoder and mechanical limit switch.

Techincal Features:

• Max gate weight : 600 kg
• Power line supply : 230V AC - 50Hz
• Motor power supply : 230V AC
• Power rating : 240W
• Frequency of use : 50%
• Thrust : 300N
• Operating temperature : -20+55 C°
• Protection level : IP44
• Reductor Type : Irreversible
• Manoeuvre speed : 9.5 m/min (0.16 m/s)
• Motor thermal protection :150°C
• Incorporated condenser : 12,5 µF
• Limit switch : Mechanical
• Onboard control unit : H70/104AC
• Encoder : Optical
• Type exit gear : Z15/mod 4
• Maximum dimension product in mm (L x W x H) : 315 x 165,8 x 329
• Product weight packed (Kg) : 12,3

Number items per pallet : 44

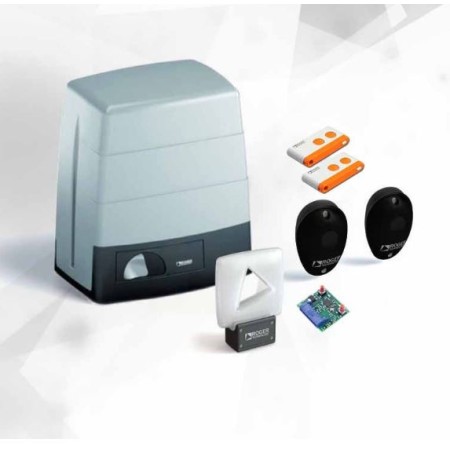

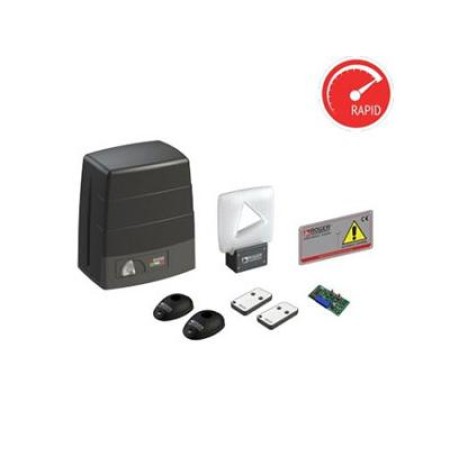

ROGER H30 Kit Contains:

• 1 x ROGER H30 400 Kg Sliding Gate Motor.
• 2 x ROGER E80 Remote Control.
• 1 x ROGER R90 Photocell Sensors.
• 1 x ROGER Blinker Light.
• 4 x Nylon Rack 1m.
• 1 x Push button.
• 1 x Fixing Plate.
