ROGER R30 1200 KG

ROGER R30/1204 Sliding Gate Motor UAE.

• R30/1204
• Electromechanical motor 230V AC
• Irreversible ideal for sliding gates up to 1200 Kg.
• optical encoder and magnetic limit switch.
• Optical encoder.
• Magnetic limit switch.
• 230V AC.

Technical features:

• Max gate weight : 1200 kg
• Power line supply : 230V AC - 50Hz
• Motor power supply : 230V AC
• Power rating : 420W
• Frequency of use : 50%
• Thrust : 800N
• Operating temperature : -20+55°C
• Protection level : IP44
• Reductor Type : Irreversible
• Manoeuvre speed : 9.5 m/min (0.16 m/s)
• Motor thermal protection : 150°C
• Incorporated condenser : 18 µF
• Limit switch : Magnetic
• Onboard control unit : H70/104AC
• Encoder : Optical
• Type exit gear : Z17/mod 4
• Maximum dimension product in mm (L x W x H) : 325 x 162 x 294
• Product weight packed (Kg) : 16,7.

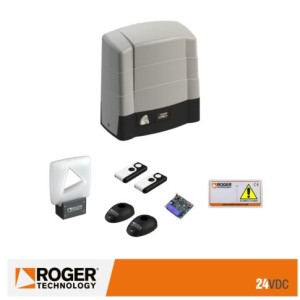

ROGER R30 Kit Contains:

• 1 x ROGER R30 1200 Kg Sliding Gate Motor.
• 2 x ROGER E80 Remote Control.
• 1 x ROGER R90 Photocell Sensors.
• 1 x ROGER Blinker Light.
• 4 x Nylon Rack 1m.
• 1 x Push button.
