ROGER R30 800 KG

ROGER R30/805 Sliding Gate Motors in UAE.

• KIT R30/805
• KIT Electromechanical motor 230V AC irreversible ideal
• for sliding gates up to 800 kg with built-in control unit H70,
• optical encoder and mechanical limit switch.

Techincal Features:

• Max gate weight : 800 kg
• Power line supply : 230V AC - 50Hz
• Motor power supply : 230V AC
• Power rating : 350W
• Frequency of use : 50%
• Thrust : 500N
• Operating temperature : -20+55°C
• Protection level : IP44
• Reductor Type : Irreversible
• Manoeuvre speed : 9.5 m/min (0.16 m/s)
• Motor thermal protection : 150°C
• Incorporated condenser :15 µF
• Limit switch : Mechanical
• Onboard control unit : H70/104AC
• Encoder : Optical
• Type exit gear : Z17/mod 4
• Maximum dimension product in mm (L x W x H) : 325 x 162 x 295
• Product weight packed (Kg) : 15,9
• Number items per pallet : 44

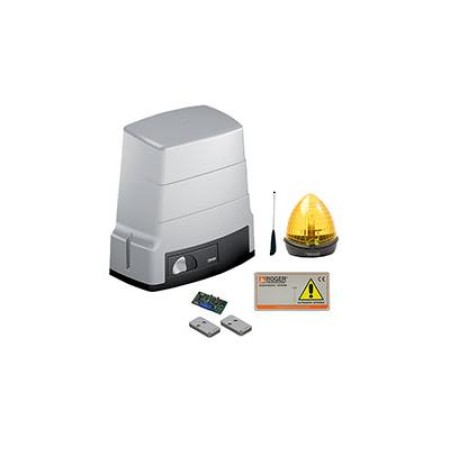

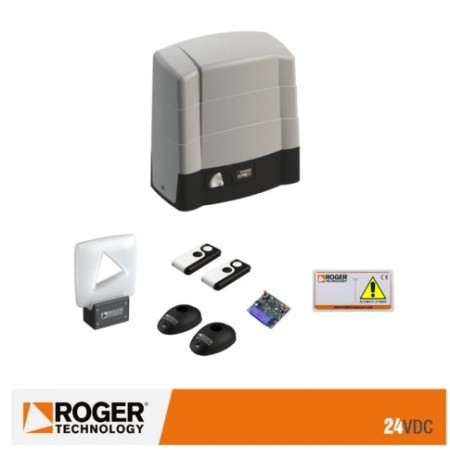

ROGER R30 Kit Contains:

• 1 x ROGER R30 800 Kg Sliding Gate Motor.
• 2 x ROGER E80 Remote Control.
• 1 x ROGER R90 Photocell Sensors.
• 1 x ROGER Blinker Light.
• 4 x Nylon Rack 1m.
• 1 x Push button.
• 1 x Fixing Plate.
