BENINCA BILL30M

Beninca Bill30m Swing Gate motor kit up to 2.5 Meters in Dubai UAE.

• 230 Vac Up to 2.5 m per door leaf.
• Irreversible 230 Vac electromechanical geared motor.
• Neat design and size, particularly suited to forged iron gates.
• Easy and quick to install due to compact size and installation geometry.
• Worm protected by a scraper ring and stainless steel stem.
• Suitable for use in dusty and sandy environments or where there are aggressive atmospheric agents.
• Easy access release from above.
• Available in right or left version.

Beninca Bill30m:
BILL is the ideal motor gear to install on for wrought-iron gates up to 2,5m.

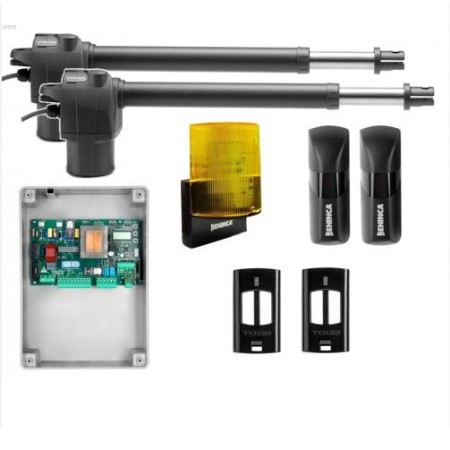

Beninca Bill30m kits contains:

• 2 x BILL30m 230 Vac operator.
• 1 x HEADY 230 Vac control unit.
• 1 x LAMPI.LED 230 Vac LED flashing light.
• 1 x PUPILLA.R Pair of fixed photocells PUPILLA.R.
• 2 x To go Remote control.
• 2 x Fixing Bracket.
• 1 x Exit Push Button.
• 2 x Manual release keys.

Technical Data:

• Power supply : 230 Vac (50-60Hz)
• Motor supply : 230 Vac
• Max absorbed current : 1.1 A
• Maximum thrust : 2800 N
• Opening time : 16"
• Standard stroke : 300 mm
• Max stroke : 320 mm
• Duty cycle : 30%
• Protection level : IP54
• Built-in control unit : no
• Encoder :
• Operating temperature : -20°C /+50°C
• Lubrication : GREASE
• Leaf max dimension : 2.5 m
• Weight : 6.1 kg
• Kit weight 14.6 kg.
