BFT ATHOS AC A25

BFT ATHOS AC A25 Swing Gate Motor in UAE.

• Gate Weight : 700 Kg
• Gate Leaf : 2.5 Meter
• Made in Italy
• ATHOS AC A25
• Product code P935108 00002
• Irreversible electromechanical operator 230 V for swing gates weighing up to 700 kg and 2,5 m long.

Technical Data Sheets:

• Control unit : ALENA SW2
• Board power supply : 230 V
• Motor voltage : 230 V
• Power consumption : 280 W
• Max. width of door/gate wing : 2.5 m
• Max. weight of door/gate wing : 700 kg
• Useful rod stroke : 300 mm
• Maximum angle : 110 °
• Cycle time  : 14 s
• Type of limit switch : work time
• Slowdown : Yes
• Locking : Mechanical
• Release : Triangle key
• Impact reaction : Electronic clutch
• Frequency of use : Semi intensive
• Protection rating : IP54
• Environmental conditions : -20 ÷ 55 °C
• Interconnectivity : no

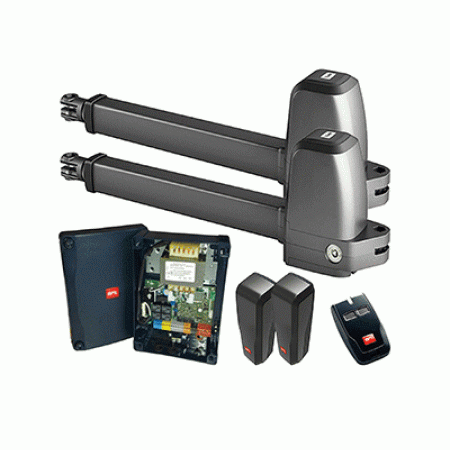

BFT ATHOS AC A25 Kit Includes:

• 2 x ATHOS AC A25 Swing Gate Motors.
• 1 x ALENA SW2 Control Board.
• 1 x Pair of self-aligning photocells. Range 30 m.
• 1 x Flashing light with incorporated antenna.
• 2 x Remote Controls Range 50/100 m.
• 1 x Push button.
• 2 x Fixing Plates.
