BFT PHOBOS AC A50

PHOBOS AC A50 Swing Gate Motor in UAE.

• Gate Weight : 500 Kg
• Gate Leaf : 5 meter long
• Made in Italy
• PHOBOS AC A50
• Product code P935097 00002
• Irreversible electromechanical operator 230 V for swing gates weighing up to 500 kg and 5 m long.

Technical Data Sheets:

• Cycle time  : 18 s
• Interconnectivity : no
• Control unit : RIGEL 6. ALENA SW2
• Type of limit switch : work time
• Board power supply : 230 V
• Slowdown  : Yes
• Motor voltage : 230 V
• Locking : Mechanical
• Power consumption : 210 W
• Release : Personal key
• Max. width of door/gate wing : 5 m
• Impact reaction : Electronic clutch
• Max. weight of door/gate wing : 500 kg
• Frequency of use : Semi intensive
• Useful rod stroke : 460 mm
• Protection rating : IPX4
• Maximum angle : 129 °
• Environmental conditions : -20 ÷ 55 °C.

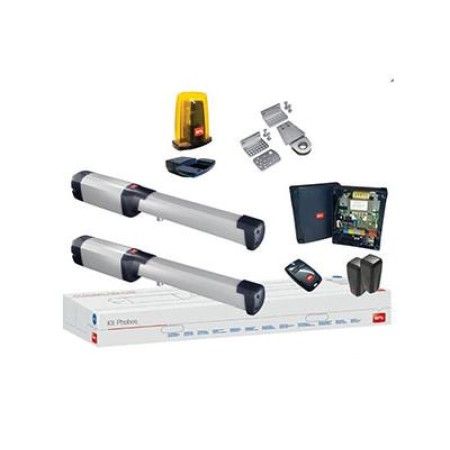

PHOBOS AC A50 kit contains:

• 2 x PHOBOS AC A50 Swing Gate Motor 230 V.
• 1 x RIGEL 6 220-230V 50/60HZ Universal control panel.
• 1 x Pair of photocells adjustable 180° horizontally. 20 metre range.
• 1 x Flashing light with incorporated antenna.
• 2 x BFT Mitto2 B RCB Remote Control.
• 1 x Push Button.
• 2 x Fixing Bracket.
