CAME ATI 5000

CAME ATI A5000 Swing Gate Motor kit in Dubai UAE.

• CAME ATI A5000 Irreversible 230 V.
• gearmotor with opening limit microswitch for swing gates with leaf up to 5 m and weighing 400 kg.

Main Features:

• Irreversible gearmotor.
• Motor and encoder management with three-wire cable in 24 V DC versions.
• Obstacle amperometric detection.
• Arrangement for operation in the event of a blackout in the 24 V DC versions.

Technical Data:

• Degree of protection (IP) : 44.
• Motor Power (V) : 230AC 50/60Hz.
• Absorption (A) : 1.2.
• Power (W)  :260.
• Maneuver time at 90° (s) : 30 ÷ 40.
• Cycles/Hour : 15.
• Thrust (N) : 400 ÷ 4000.
• Operating temperature (°C) : -20 ÷ +55.
• Engine thermal protection (°C) : 150.

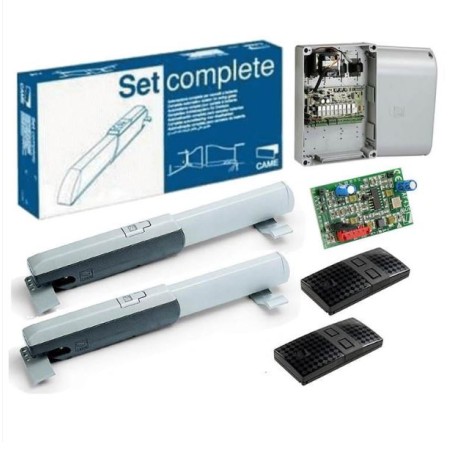

CAME ATI A5000 Kit Includes:

• 2 x CAME ATI A5000 Irreversible 230 V gearmotor with opening limit microswitch.
• 1 x Multifunction control panel for gates with two swing leaves.
• 2 x Came top 432EE Remote Control.
• 1 x CAME KIARO Flashing light.
• 1 x CAME DELTA DIR Photocell Sensors.
• 2 x Wall Fixing bracket.
• 1 x Push button.
