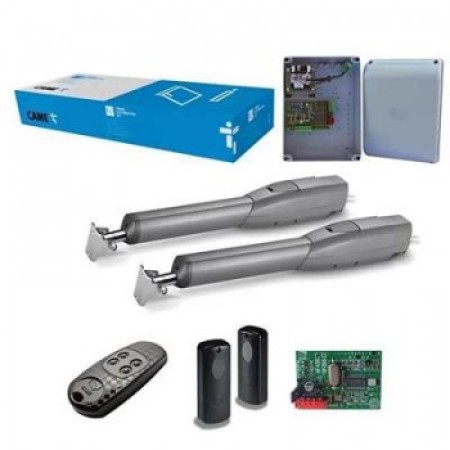

CAME ATS ATS50AGS Swing Gate Opener Motor in UAE

• CAME ATS Reliable solution for residential and condominium
• applications on gates up to 5 m and columns
• with a C-MAX up to 200 mm. ATS is provided
• with a bevel gear for smoother movement.
• Robust and durable with a die-cast aluminium structure for longer life span.
• Maximum leaf length : up to 5 m
• Use : Continuous operation
• Maximum leaf weight : up to 800 kg
• C max : 200 mm

Main characteristics:

• Designed for applications with C Max. up to 200 mm.
• Reducer with bevel gear for greater fluidity of movement.
• Developed with CONNECT technology
• for remote digital control via gateway or locally via CAME KEY.
• Sturdy and durable with die-cast aluminium supporting structure.
• Release system, with the possibility of remote control.

Technical Data:

• Models : 801MP-0050
• Power supply to motor (V) : 230 AC
• Power (W) : 250
• Current draw (A) : 1
• Force (N) : 400 ÷ 3000
• Maneuvering time at 90° (s) : 15
• Cycles/hour : 20
• IP Protection rating : 54
• Operating temperature (°C) : -20 ÷ +55
• Motor’s heat protection (°C) : 150
• Length (mm) : 920
• Weight (kg) : 8.5
