KEY STAR

Key Star Swing Gate Motor 3m up to 400 kg in Dubai UAE.

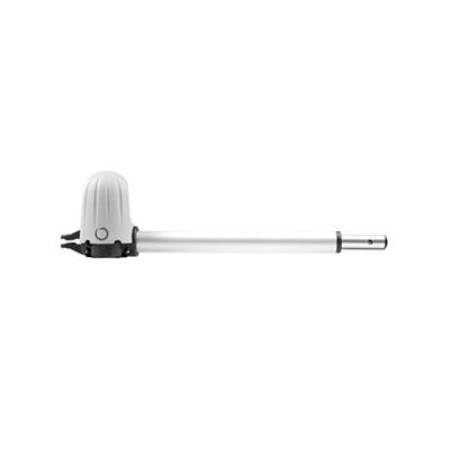

• Key Star Electromechanical irreversible gear motor for swing gates with leaves up to 3 m, 24 Vdc.
• Product code : 900KSTAR3224KS
• Speed : 2,5 cm/s
• Control unit : CT20224
• Nominal power : 85 W
• Max leaf weight : 400 kg
• New motor up to 3 m
• Compatible with new control unit CT20224.

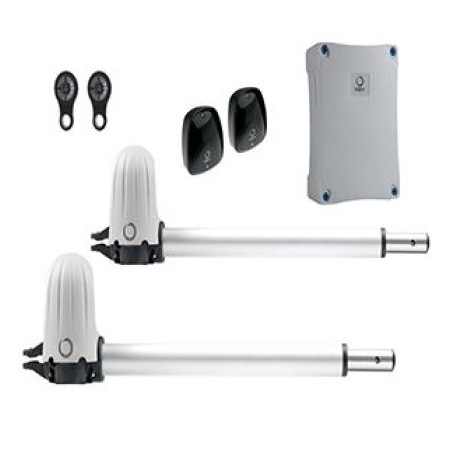

What’s Included.

• 1 x Key Star up to 3 m or max 400 kg.
• 1 x 900CT202 Control unit for two 230 Vac motors.
• 2 x SUB44WF 4-channel transmitter, white colour, XR rolling code 433 MHz, with on-board receiver.
• 1 x 900RX4K 4 channels plug-in receiver, fix or rolling code, 1000 codes, blue led, 433MHz.
• 1 x FT33 Pair of photocells for external use and flush mounting.
• 1 x 900LUMY-230E 230 Vac flashing light, with antenna.

Technical Datasheet:

• Speed cm/s : 2,5
• 90° Opening time S : 18-25
• Force N : 1400
• Duty cycle percentage % : 80
• Control unit : CT20224
• Voltage Vdc : 24
• Nominal current A : 3,5
• Nominal power W : 85
• Appliance isolation class : I
• Degree of protection IP : 54
• Dimensions (L - D - H) mm : 741 - 115 - 177
• Item kg : 14
• Min operating temperature °C : -20
• Max operating temperature °C : +55
• Max leaf weight kg : 400
• Max leaf length : 3m
