Sommer twist 200 E

• Sommer Twist 200 Swing Gate Motor kit up to 300 kg in UAE.

  • twist 200 E set 2-leaf
  • twist 200 E set 2-leaf 868,95MHz.
  • SOMMER version anthracite power plug Schuko incl. 1x 4019V000.
  • Article No. S11521-00001
  • two twist 200 E swing gate operator (can be used universally for DIN left and DIN right)
  • Post and gate leaf fitting
  • Control unit DST-A 24 in housing (IP65), Dimensions: 250 × 175 × 75 mm
  • SOMup4 radio receiver (FM 868.95 MHz SOMloq2, 40 radio memory positions), pluggable
  • Slot for Memo memory extension (450 radio commands)
  • Pearl Vibe 4-command handheld transmitter (# 4019V000)
  • Transmitters can be programmed and deleted and information on the radio receiver.

  Technical Data:

  • Weight (kg) : 11.7504
  • EAN : 4015862918321
  • Goods number : 8479 89 97
  • Radio frequency 1 : 868,950 MHz SOMloq2
  • Number of radio memory positions : 40
  • Somloq compatible : nein
  • SOMloq2 compatible  : ja
  • IP code : IP 44
  • Protection class : I
  • Standby : 2,90 W
  • Temperature min. : - 30 °C
  • Temperature max. : 70 °C
  • max. pulling force : 2000 N
  • Rated pulling force : 660 N
  • Operating time : ED 15% S3
  • max. gate weight : 300 kg
  • max. gate opening angle : 120 °
  • max. gate inclination : 10,0 %

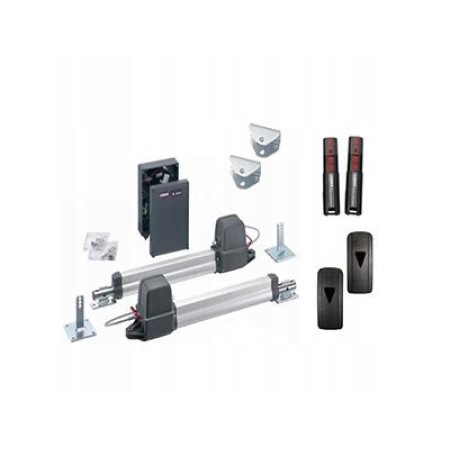

  Kit's Included:


  • 2 x twist 200 E swing gate operator.
  • 1 x Control unit in housing.
  • 1 x Post and hinged double door fittings.
  • 1 x Radio receiver SOMup4 FM 868.95 MHz.
  • 2 x 4-command handheld transmitter Pearl Vibe.
  • 1 x Blinker light.
  • 2 x Fixing Bracket.
