VDS PM 400

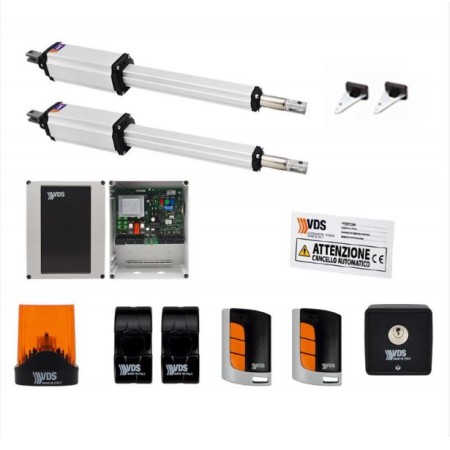

VDS PM 400 Swing Gate Motor up to 2.5m in Dubai UAE.
- Leaf length from 1.80 mt up to 3.50 mt
- Reversible
- Sturdy aluminum structure
- Rod stroke mm 300 – mm 400 – mm 600
- Stainless steel rod with dust scraper
- Very quiet operation
- Thermal cut out 140°
- Manual release with customized key
- Lithium grease lubrications of mechanical parts against corrosion, oxidation and rust
- 120° opening
- Quick installation with multi-position brackets and cover for brackets in technopolimers
- Anti-squashing system (en 12453)
- Slowing down function (en 12453)
- Power supply 230 vac.
- Performance requirements:
- Operating cycle semi-intensivo
- Frequency of use 50%
- Opening 15 – 25 – 30 sec.
- Thrust 1500N
Technical features:
- POWER SUPPLY : 230 VAC
- LEAF WEIGHT : 250 KG
- LEAF LENGHT : 3,50 M
- ENGINE RPM : 800 RPM
- AVERAGE ABSORPTION : 1 A
- ABSORBED POWER : 250 W
- LIMIT SWITCH : NO
- CONDENSER : 12,5 UF
- OPERATOR WEIGHT : 7,5 KG
- NOISE LEVEL : < 30 DBA
- ENVIROMENTAL CONDITIONS : -20/+55° C
- DEGREE OF PROTECTION : IP55
VDS PM 400 Swing Gate Motor in UAE
- Brand: VDS
- Product Code: VDS PM 400
- Availability: In Stock
-
AED 2,560.00
