VDS 1000 KG

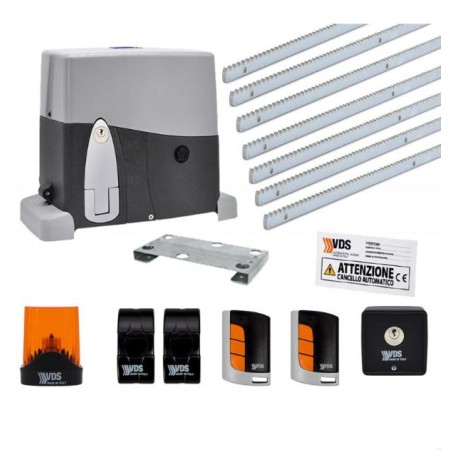

VDS Carrera 1000 Kg Sliding Gate Motor in Dubai UAE.

• Leaf weight up to 1000Kg
• Structure in die-cast aluminum, powder painted
• Steel and cast gears obtained from solid
• Lithium grease lubrications of mechanical parts against corrosion, oxidation and rust
• Very quiet operation
• High-performance electric motor
• Release device with customized key
• Available with and without encoder
• Electronic torque control
• Pre-wired and easy programming software
• Available with and without control unit
• Control unit box with air-stop seal against moisture and insects
• Anti-squashing system and slowing down function (en 12453)
• Optional kit battery backup
• Power supply 230Vac – 24Vcc.

Performance requirements:

• Operating cycle: semi-intensive 230Vac, intensive 24Vcc
• Frequency of use: 50% (230Vac) – 80% (24Vcc)
• Speed: 10 mt./min. (230 Vac) – 12 mt./min. (24 Vcc).

Technical features:

• Power supply : 230 Vac
• Leaf weight : 1000 KG
• Pinion : M4-Z16
• Engine RPM : 1400 RPM
• Average absorption : 2 A
• Absorbed power : 330 W
• Condenser : 12,5 UF
• Operator weight : 9 KG
• Noise level : < 30 DBA
• Enviromental conditions : -20/+55° C
• Degree of protection : IP44
